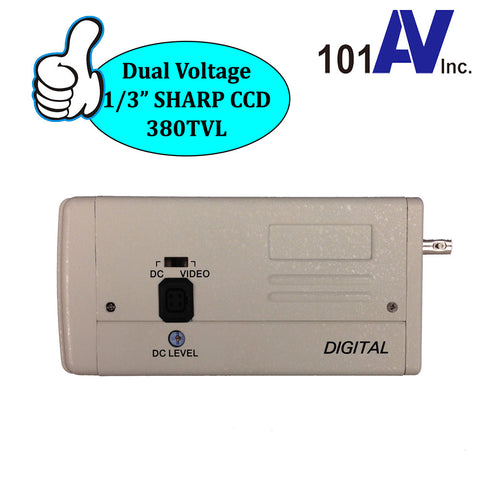

CCTV Box Camera 1/3” SHARP CCD 380TVL Dual Voltage 12V DC / 24V AC Security Color BNC (CC-3381N)
This color video camera employs 1/3" SHARP CCD image sensor with 310/270 k picture elements and equipped with digital signal processor for video signal processing to provide high quality and stable picture. Power supply and Lens not included.
Feature Points:
- Resolution: 380 TV lines of horizontal resolution.
- Low Lux: By employing high sensitivity image sensor and low noise circuit design produces 0.5 lux and signal-to-noise ratio of 48 dB.
- White Balance: The wide range of Auto White Balance (AWB) allow the camera to automatically adjust the tone according to the color temperature of the light source illuminating the subject.
- Back Light Compensation: Smart digital control Auto BLC, ensure for use against any unusual lighting conditions.
- Auto Gain Control (AGC): Advanced Super AGC and AGC function built-in.
- Dual Voltage: 12V DC 24V AC.
- Internal synchronization.
Specification:
|
Model No. |
CC-3381N |
|
Power Requirements |
DC12V AC24V |
|
Image Sensor |
1/3” SHARP CCD |
|
Sync System |
Internal |
|
Picture Elements |
NTSC: 512x492 |
|
Scanning System |
NTSC: 525 lines, 2:1 Interlace |
|
Horizontal Resolution |
380 TV Lines |
|
Min Illumination |
0.5 Lux @ F1.2 |
|
S/N Ratio |
>48dB |
|
Aperture Correction |
Horizontal & Vertical 2H Enhancer |
|
|
|
|
|
|
|
Auto Iris Shutter |
Auto Iris Mode: NTSC: 1/60 sec. |
|
Auto Electronic Shutter |
AES: 1/50(60) ~ 1/100,000 sec. |
|
White balance |
AWB |
|
BL Compensation |
YES |
|
Mirror function |
YES |
|
Video Output |
1Vp-p, 75Ω Composite, BNC Connector |
|
Auto Iris Lens |
Accept VD/DC Servo Iris Lens |
|
Operating Temperature |
-10°C – 50°C (14°F – 122°F) |
|
Weight |
0.55kg |
|
Dimensions |
60 x 53 x 110 mm (W x H x D) |
What's in the box?

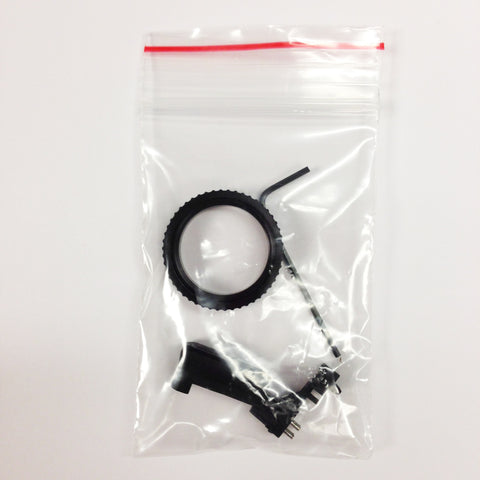

- Box security camera x 1., user manual, accessories
