[LTD-04TCB3] 4CH 1080P 5in1 (TVI, AHD, CVI, Analog CVBS and IP) DVR w/ HDMI BNC VGA Output Mobile-APP Motion Real Time Recording
**PROMOTION PRICE NOW**
This is 4CH True-HD DVR page which can be working with TVI cameras/ AHD cameras/ CVI cameras/ Analog cameras/ IP cameras, if you are looking for 8CH/16CH True-HD DVR, please go to:
**We use WD Purple Surveillance Hard Drive or Seagate Surveillance Hard Drive for our DVRs!!!**
You can also choose if you would like to have pre-installed (1TB/ 2TB/ 3TB) hard drive with it. from pull out list. If you need 4TB HDD storage or more, please contact us for the price. Thank you!
This 4CH 5in1 (TVI, AHD, CVI, IP, Analog CVBS) H.265+ True-HD DVR (Digital Video Recorder) is designed especially for CCTV system. It adopts high performance video processing chips and embedded Linux system. Meanwhile, it utilizes many most advanced technologies, such as standard H.265/H.264 with low bit rate, Dual stream, SATA interface, HDMI, VGA BNC output, and USB Mouse supported, IE browser supported with full remote control, mobile view (by phones), etc., which ensure its powerful functions and high stability. Due to these distinctive characteristics, it is widely used in banks, telecommunication, transportation, factories, warehouse, and irrigation and so on.
DVR User Manual Download
Quick Installation Guide for Mobile Phone Download
Quick Installation Guide for CMS Software Download
DVR Specification Download
DVR Software Download
- EXCEPTIONALLY SECURITY and PRIVACY via video encryption, strong password, and anti hacking protocols.
- VIEW ANYWHERE, ANYTIME through Snapshot, SMS text, and Email notification to cell phones
- CLARITY EVEN AT NIGHT with Full HD picture quality for solid day & night surveillance applications
- USER FRIENDLY CLOUD APPs without port forwarding for both Android and iPhone
- MOTION ACTIVATED full screen alarm call up notification with optional audible warning

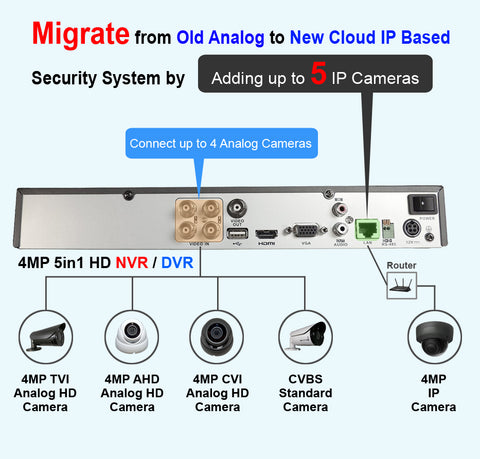

- EXISTING & NEW HD SURVEILLANCE SYSTEM compatibility with Multiple video formats including Full HD/TVI/AHD, SD/960H/composite video, and IP/network.
- EXTRA VIEWING STATION via multiple video out connectors including: HDMI/VGA/BNC/IP network
- CLEAR SETUP INSTRUCTION including QIG (Quick Installation Guide) for PC based VMS/CMS integration, cloud based cell phone APPs, and real time Snapshot alarm notification.
- US Local Support

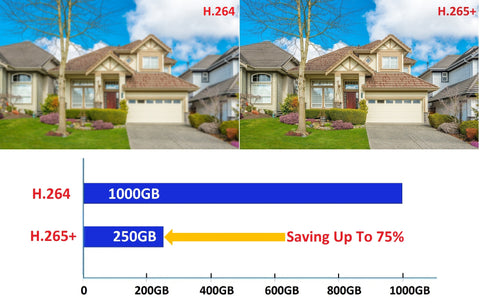

H.265+/H.264 compression with low bit rate and better image quality

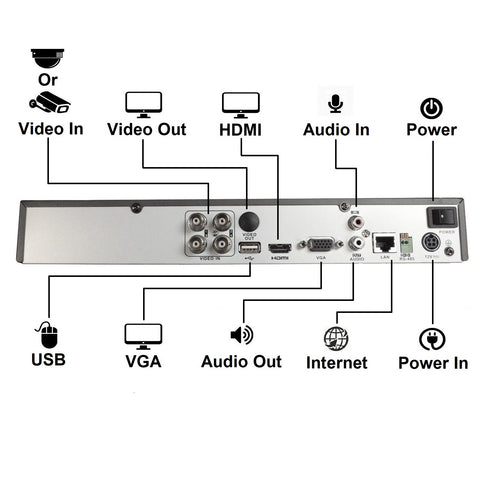

One HDMI Output Port and One VGA Output can up to 1920 x 1080, One CVBS (BNC) Output, One Audio Input and One Audio Output.
Up to 1080p@30fps recording with 1080P efficient mode on.
All 16 channels in High Resolution 1080P Recording and Display and with 1080P Video Playback.
USB Mouse to make full control
Support One SATA HDD to record for a longer time without any limitation; each HDD can up to 8TB storage.
Support USB 2.0 devices, Easy backup with USB FLASH DRIVE and Network
Support schedule for motion detection, linked channels recording once motion triggered on certain channel
Support PELCO-D and PELCO protocol for PTZ control
Support mobile surveillance on Iphone & Android Smart Phone, 3G network available, CMS to manage multi devices on internet
Support 1 Year Manufacturer Warranty
