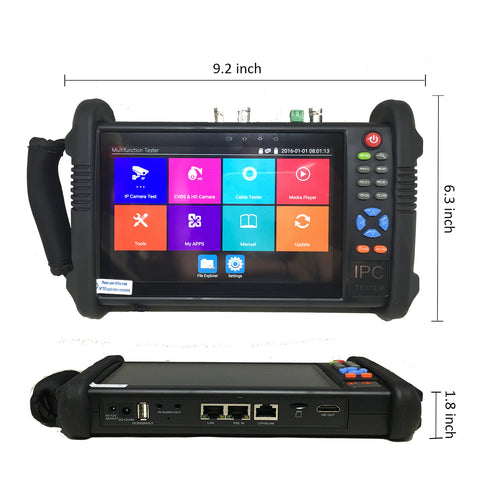

[NEW] [TM-R1710-2M] 7" Professional 7in1 Tester Monitor Support IP Camera, PTZ Camera, HD TVI, AHD, CVI, SDI Camera & SD Analog CVBS Camera

  • $ 39899


◆ 7 inch retina touch screen, 1920*1200 resolution


◆ H.265/H.264, 4K video display via mainstream

◆ Dahua, Hikvision, Axis etc ONVIF camera test

◆ Built in WIFI, create WIFI hotspot

◆ HDMI input & output, support1080P

◆ DC12V 2A, DC48V PoE power output, max power 25.5W

◆ Rapid ONVIF, auto view video and create testing report

◆ UTP cable tester/RJ45 cable TDR test, cable quality test

◆ Tester Play: Tester, mobile phone, PC display at the same time



Product Description:

The model TM-R1710-2M is a multi-function CCTV IP&HD tester monitor, which can resolve project problems and make the installation process quicker and more efficient. It is developed for the installation and maintenance of video monitoring system. Utilizing a visual and functional OSD menu, it support IP camera, Standard 960H Camera and coaxial HD TVI/ AHD/ CVI/ EX-SDI camera test, coaxial view control and menu debugging. Support preview, zoom, photograph, play back. Its functions, easy operation, and convenient portability enable it simple for the contractor to install and maintain the video camera, promote working efficiency and cost-down the expenditure of the project.





✔ 7 inch 1920*1200 resolution retina display touch screen IP & CVBS & TVI & AHD & CVI & SDI tester.

✔ Compatible with almost all models' IP cameras, such as Hikvision, DaHua, uniview, Hanbon, Samsung.

✔ Support coaxial HD TVI/ AHD/ CVI/ EX-SDI camera test, coaxial view control and menu debugging. Support preview, zoom, photograph, play back.

✔ Support TDR cable test. To test cable status, length, attenuation, reflect rate, impedance, time delay deviation etc.

✔ Built-in WIFI, Support wireless WIFI hotspots.10/100M Lan Port, H.265/H.264, 4K video display via mainstream.

✔ PoE DC48V power output, Max power 24W; Support 12V /3A DC power output, 5V/2A power output.

✔ Support ONE SCREEN TWO WINDOWS DISPLAYS. IP camera and analog camera pictures can be shown at the same time.

✔ Support quick screen capture function, press and hold confirm key to get screen shot

✔ BUILT IN IP SCANNING APP, auto-scan the whole network segment IP, and auto-modify tester’s IP address

✔ HDMI signal output 1920 x 1080P, support 1080p display image, record and snapshot

✔ UTP cable, telephone cable's sequence and connectivity test.

✔ POE/DC12V voltage and power measurement

✔ Lithium Ion Polymer 7.4V/5000mAh Battery, working time lasts 10 hours, Battery charge time 6 hours




Specification download



What's in the Box?

1 x IP Camera Tester
1 x Power Output Cable
1 x Audio Test Cable
1 x BNC Cable
1 x Crocodile Clip BNC Cable
1 x Cable Tracer
1 x Power Adaptor

1 x User manual
3 x Straps
1 x Storage Bag
