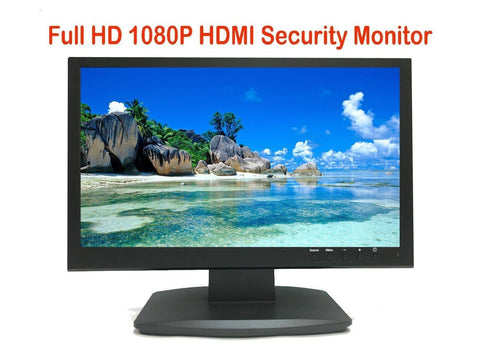

Security Monitor 21.5" 3D comb filter 1080P 1920x1080 HDMI VGA BNC Inputs & loop BNC Output
Description:
This is a brand new high performance 21.5-inch LED video monitor specifically designed for security Industry. With a Resolution of 1920 x 1080 panels, it displays high quality video or computer signals via multiple inputs. Its features include a 3D Comb Filter, De-Interlace and 3D Noise Reduction as well as HDMI, VGA and BNC inputs and one loop through BNC output. Certified by CE, FCC-DOC and RoHS the monitor comes with lifetime usage rating of 50,000 hours. Additional features include multi-language OSD (On-Screen Display) and Built-in stereo Speakers.
Feature:
- Ultra fine pixel pitch for close viewing in surveillance applications
- With a full HD image quality of 1920 x 1080 pixels, the newest high definition, HD TVI and AHD, cameras will look crisp and lifelike (need a TVI/AHD to HDMI converter)
- Existing and new HD surveillance system compatibility with multiple video formats including new full high definition HD TVI/AHD (need a TVI/AHD to HDMI converter) and traditional standard definition 960H/composite video cameras (can connect with analog CVBS camera directly).
- Multiple inputs allow multi-device setups without the need to juggle cords
- Fast 5 ms response time to avoid blurred motion monitoring and feed delays on critical moment
- Auto display recovery after power interruptions
- Great reliability rating of 50,000 hours for 24/7 security application requirements
- Built in speakers save money on additional audio hardware for audio warning notification
- Wide view angle of 170 degrees for fewer restrictions on your range of vision
- Desktop stand and standard VESA wall mount holes for desktop and wall mount installations
- Ergonomic tilt and swivel design for a more efficient, productive, and safer workplace

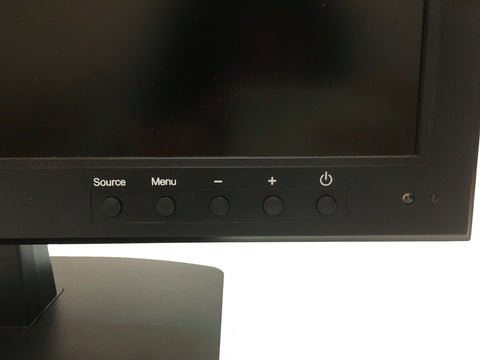

- User friendly front push button operation
- US local support and service
Specification:
Model |
MT-G3D215 (D) |
Size |
21.5” LED CCTV Monitor |
Aspect Ratio |
16:9 |
Resolution |
BNC: 570 TV Lines VGA: 1920 x 1080 HDMI: 1920 x 1080p |
Colors |
16.7M |
Viewing Angle |
H:170° V:160° |
Video Compatibility |
NTSC/PAL |
Contrast ratio |
1000:1 |
Response Time(TF) |
5 ms |
Comb Filter with De-interlace |
3D |
Noise Reduction |
3D |
Brightness |
250 cd/m2 |
Speakers |
2 x 2.5w (Stereo PC type 3.5mm jack) |
|
|
Video Interface |
BNC Composite In x 2, BNC Composite Out x 1 VGA x 1, HDMI x 1 |
Audio Interface |
1 x PC Audio |
Power Interface |
1 x DC in |
Wall Hanging |
VESA Standard |
VESA Size |
100 x 100 mm |
Stand |
Plastic |
Bezel |
Plastic |
OSD Language |
English, Chinese, French, German, Italian, Spanish, Portugal, Polish(Polski), Russian(Pycck) |
Power |
12VDC, 3A, <25W |
Power Voltage |
AC 110V ~ 240V, 50/60 Hz |
Accessories |
Power cord, HDMI Cable and User Manual |
Packaging |
22.8” x 4.7” x 17" |
Dimension |
580 x 120 x 440 mm |
Gross Weight |
10 lbs (4.6 kg) |
Net Weight |
6.8 lbs (3.1 kg) |
Operating Temp |
14° F ~ 122° F (-10° C ~ 50° C) |
Safety |
FCC-DOC, CE, RoHS |
What's in the box?
- Security Monitor x 1, Power Adapter x1, Power cord x 1, HDMI cable(1.5m), User manual.
