[NEW] [MT-G236HD] 23.6" Analog HD over BNC Connection, Perfect Monitor for application without DVR, Professional LED Security Monitor Directly Work with HD-TVI, AHD, CVI & CVBS Camera, 1x HDMI & 2X BNC Inputs for CCTV DVR Home Office Surveillance System
~NEW ARRIVAL~ PROMOTION PRICE NOW !!!
101 AV Inc. provides various kinds of high-quality, delicate-look and reasonable-price security products.
This is a 23.6 inch Professional Grade LED Security Monitor. Great reliability rating for 24/7 security application requirements .Ergonomic tilt and swivel design for a more efficient, productive, and safer workplace. User friendly front push button operation.US local support and service.
#CCTV monitor, Security monitor, Security displays, BNC monitor, VGA monitor, Security screen, Security camera monitor, Analog monitor, DVR monitor, NVR monitor, CCTV camera monitor, Remote viewing monitor, Access control monitor, Alarm monitor, Monitoring monitor.
- 23.6" Analog HD over Coax LED Security Monitor. With a full HD image quality of 1920 x 1080 pixels, the newest high definition, HD/TVI and AHD, cameras will look crisp and lifelike. Ultra fine pixel pitch for close viewing in surveillance applications.

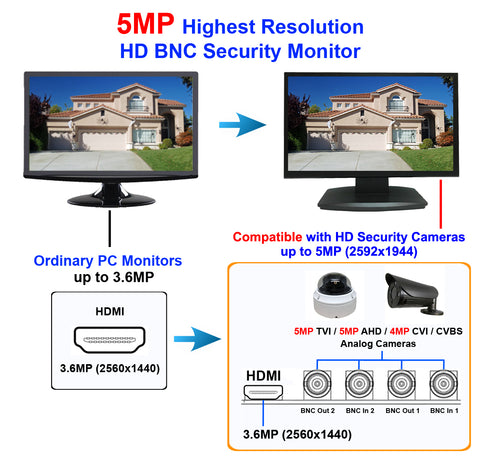

- 1x Digital Input (HDMI). 2x Analog HD Video Input (BNC). 2x Analog HD Video Output (BNC). Existing and new HD surveillance system compatibility with multiple video formats including new full high definition HD-TVI/AHD/CVI and traditional standard definition 960H/composite video cameras(can connect Analog HD and CVBS Camera directly). Support up to 5MP HD-TVI, 5MP HD-AHD, and 4MP HD-CVI.
- Construction-black plastic bezel and removable base. Multiple inputs allow multi-device setups without the need to juggle cords. Fast 5 ms response time to avoid blurred motion monitoring and feed delays on critical moment. Auto display recovery after power interruptions.
- Wide view angle of 178 degrees for fewer restrictions on your range of vision.
- NTSC/PAL/SECAM auto detection; Certification: FCC-DOC , CE, and RoHS. Desktop stand and standard VESA wall mount holes for desktop and wall mount installations. We are the sole distributor of 101 AV Inc. products. There are no authorized 3rd party resellers of our products.
Model No.: MT-G236HD
Size: 23.6" Wide Screen
Aspect Ratio (Pixel Count): 16:9 (FHD) (1920 x 1080p)
Viewing Lines (BNC Connector): 1000 TVL
Contrast Ratio: 1000:1
Response Time: 5 ms
Viewing Angle: H:178°/V:178°

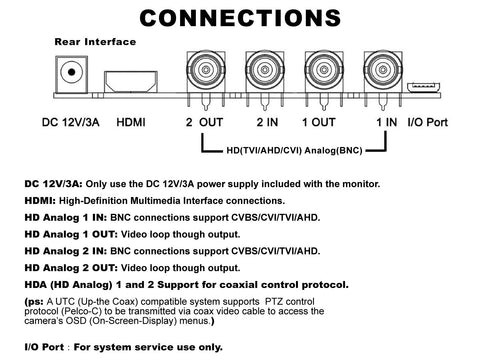

Video Inputs: 2 x HD Analog (BNC Connector) (TVI/AHD/CVI/CVBS), 1x HDMI
Video Outputs: 2 x HD Analog (BNC Connector) (TVI/AHD/CVI/CVBS)
HDMI Format: 2560x1440@30/60, 19201080@25/30/50/60HZ, 1600x1200@60HZ, 1440x900@60HZ, 1366x768@60HZ, 1280x1024@60HZ, 1280x720@60HZ, 1024x768@60HZ, 800x600@60HZ
TVI: 5MP@20fps, 4MP@25fps, 3MP@18.75fps, 2560x1440@25/30fps, 1080P@25/30fps, 720P@25/30fps
AHD: 5MP@20fps , 4MP@25fps, 2560x1440@25/30fps, 1080P@25/30fps, 720P@25/30fps
CVI: 4MP@25fps, 2560x1440@25/30fps, 1080P@25/30fps, 720P@25/30/50/60fps
Power Consumption: 12VDC, 3A, <25W
VESA Size: 100x100mm
Auto Adjustment: Yes
OSD Menu: Yes
OSD Language: English, Spanish, German, Russian, Italian and French
Working Temperature: 0 ~ 40℃
Work Humidity: 5% - 90%
Packing Dimensions (LxDxW): 22.8" x 4.7" x 17"
Net Weight: 13.9 lbs
Certification: FCC-DOC , CE, and RoHS
What is in the box?
23.6" LED Security Monitor x 1; Power Cord, Adapter, Stand, User’s Guide, HDMI Cable
