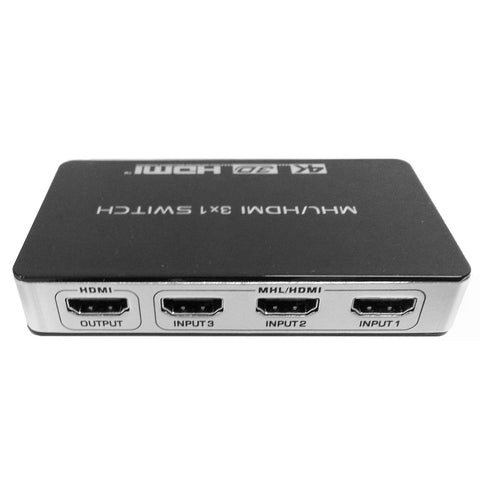

Latest Generation HDMI V1.4 3x1 port Switch Full HD 4K2K 1080P with IR Remote

  • $ 2999
  • Save $ 4000


Description:

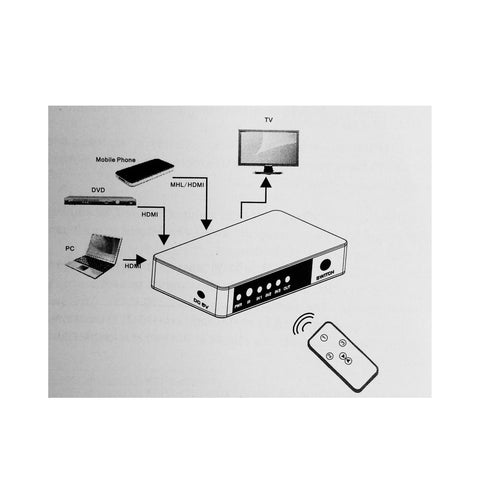

The 3x1 HDMI Switch allows access to multiple MHL/HDMI sources, using a single HDMI sink. The switch supports 3 MHL/HFMI port operates in dual mode and one HDMI outpot port. In MHL mode, the switch supports resolutions up to 720p @ 60Hz, 1080p @ 30Hz or at PackedPixel mode 1080p @ 60Hz. In HDMI mode, the switch supports resolutions up to 4Kx2K 24 / 25 / 30Hz. the switch also supports EDID Ram. The switch allows 3 HDMI devices to be switched easily through one HDMI compatible monitor or projector. The switch can also be placed at the end of a long HDMI cable to regenerate the HDMI signal.

Our devices offer solutions for noise, space and security concerns, data center control, information distribution, conference room presentation, school, and corporate training environments.



Feature Points:

  • Supports 3 MHL/HDMI input ports with dual mode capability.
  • Support 1 HDMI output port.
  • Compliant with MHL2.0 and HDMI 1.4b specification.
  • Support deep color 30bit and 36bit.
  • Support Blue-Ray 24 / 50 / 60fs / HD-DVD / xvYcc.
  • Digital audio format: DTS-HD / Dolby-true HD / LPCM7.1 / DTS / Dolby-AC3 / DSD.
  • Support signal retiming.
  • SupportEqualizer TMDS Output: 25MHz - 297MHz TMDS clock.
  • Support up to 297MHz TMDS clock rate (4Kx2K) for HDMI input.
  • Support EDID RAM.
  • Support 1080P inout up to 15 meters AWG26 HDMI standard cable length and output up to 20 meters AWG26 HDMI standard cable length.
  • Inputs can be switched with the IR remote control, and also can be controlled by button.
  • No loss of quality.
  • Installs in minutes.
  • Support hot plug-and -play
  • LED indicate signal and power mode.
  • Power Supply.



Specification:

Max Single Link Range: 24 / 25 / 30fs / 4Kx2K

HDMI Resolution: 24 / 50 / 60fs / 1080p / 1080i / 720p / 576p / 576i / 480p / 480i

Video Color Format: 24 bit / deep color 30 bit and 36 bit

Vertical Frequency Range: 60Hz @ 1080p; 30Hz @ 4K x2K

Audio Format: DTS-HD / Dolby-true HD / LPCM7.1 / DTS / Dolby-AC3 / DSD

HDMI Version: HDMI v1.4

Bandwidth: Up to 297Mhz

Band Rate: Up to 8.9Gbps

1080P Input Cable Distance: 15M  AWG26 HDMI Standard Cable

1080P Output Cable Distance: 20M  AWG26 HDMI Standard Cable

4K x 2K Input Cable Distance: 5M  AWG26 HDMI Standard Cable

4K x 2K Output Cable Distance: 10M  AWG26 HDMI Standard Cable

Dimension (L x W x H): 110 x 60 x 20 (mm)

Weight: 105g

Max Working Current: 350mA

Power Supply: DC 5V, 1A



What's in the box?

  1. HDMI 3x1 Switch x 1

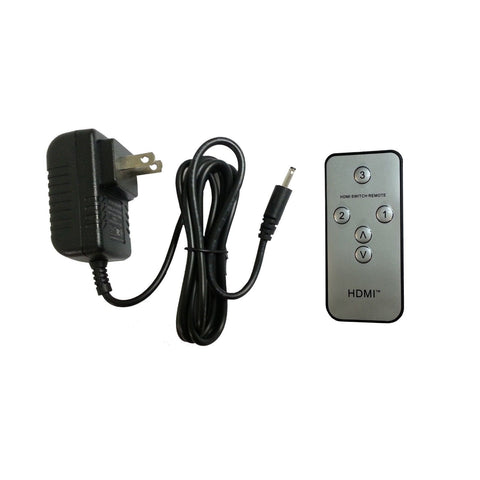

  2. DC 5V Power Adaptor x 1
  3. User Manual x 1
  4. Remote Controller x 1

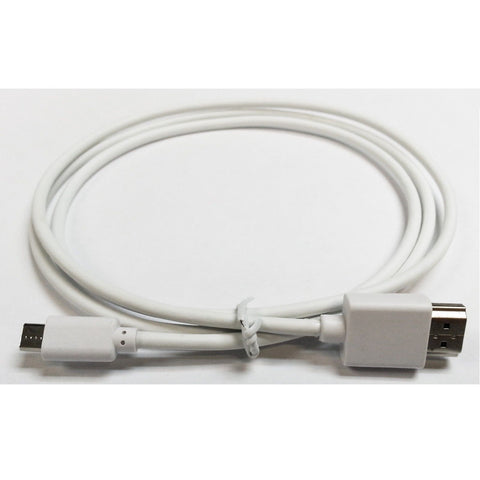

  5. 4ft mini HDMI to HDMI cable x 1
